Specification

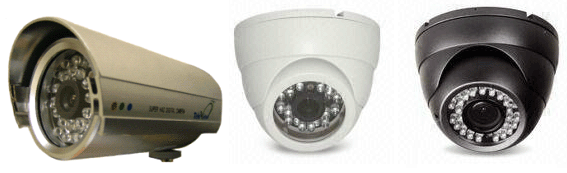

Model: KIR-2421K20  /  KDP-2421SH20
Sensor: ¼” SHARP CCD SENSOR
Signal mode: PAL PAL
Resolution: 500Hx582V     500Hx582V
Frequency: H:15.625KHz V: 50Hz
Resolution: Color 420TVL
Minimum Illumination: 00 LUX with 24 IR LED ON Lu000 L
S/N ratio: >=48dB
(AGC): none
(Shutter): 1/50 – 1/100,000S
OP Temp: -10 to +50 degree C
Distance: up to 10, UP TO 20M
Video output: 1 Vpp, 75Ω
Auto iris: Electronics AES
Fix lens: 3.6mm Len (75 degree)
Voltage: 12VDC ± 10%
Current: 165mA
Size: KIR=52DIAx72, KDP=93DIAx 66 mm
Weight: 700g, 300g
